Patton Model 465F

Patton Model 465F

Matches 16 sets of dual 75 ohm coax connections to 120 ohm twisted pair connections

G.703 Balun, 2 Mbps, (1.6/5.6 Connectors)

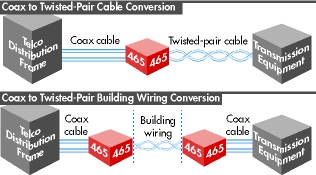

Baluns are miniature adapters for connecting mixed cable types or devices with mis-matched interfaces. They enable carrier and large-enterprise customers to standardize on twisted-pair wiring, even though some equipment may have unique E1 terminations (see diagrams below). The Model 465 has the 1.6/5.6 coax connectors used extensively in telephone exchange sites. The balun has two interfaces, so both the TX and RX coax signals can be carried over a single length of twisted-pair cabling (which is much less costly than any kind of coaxial cable).

Product Data Sheet
